Integrated machine mirror surface shape instrument VM-2600

Overview：

This device is based on image stripe technology and is specially designed for the overall focal power detection of spectacle lenses/glass mold surface shape, which is widely to measure various parameters of spectacle lenses and glass molds.

It is able to provide precise measurements for different types of spectacle lenses quickly and accurately, helping manufacturers and optometists ensure the quality and precision of spectacle lenses.

It is applied to spectacle manufacturers, optometry centers, and retailers.

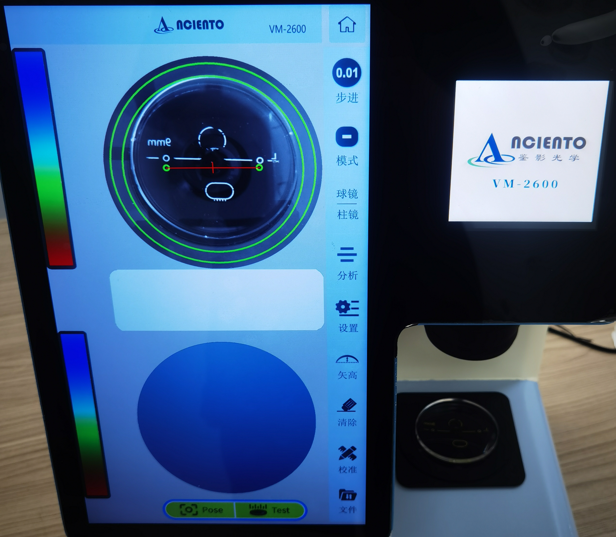

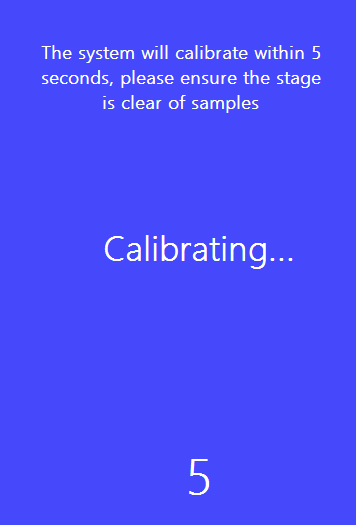

Equipment Appearance Display Start the machine to enter the calibration interface.

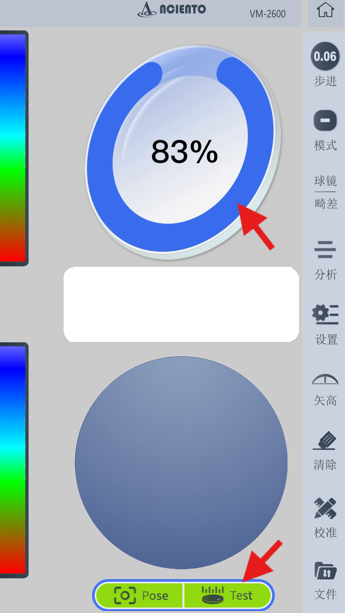

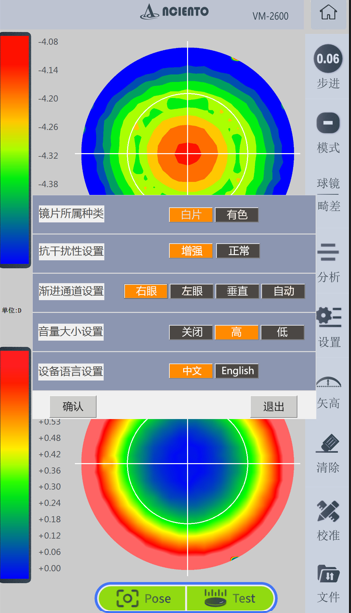

Initial interface settings Start measuring the schematic diagram

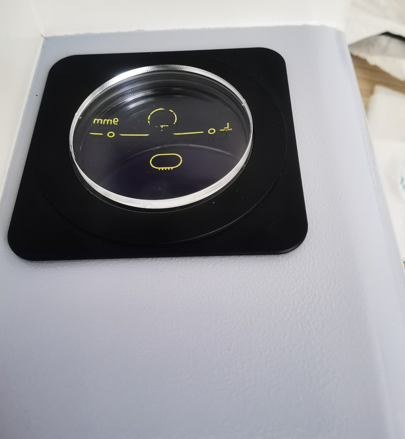

Correct placement of spectacle lenses/glass molds (schematic illustration)

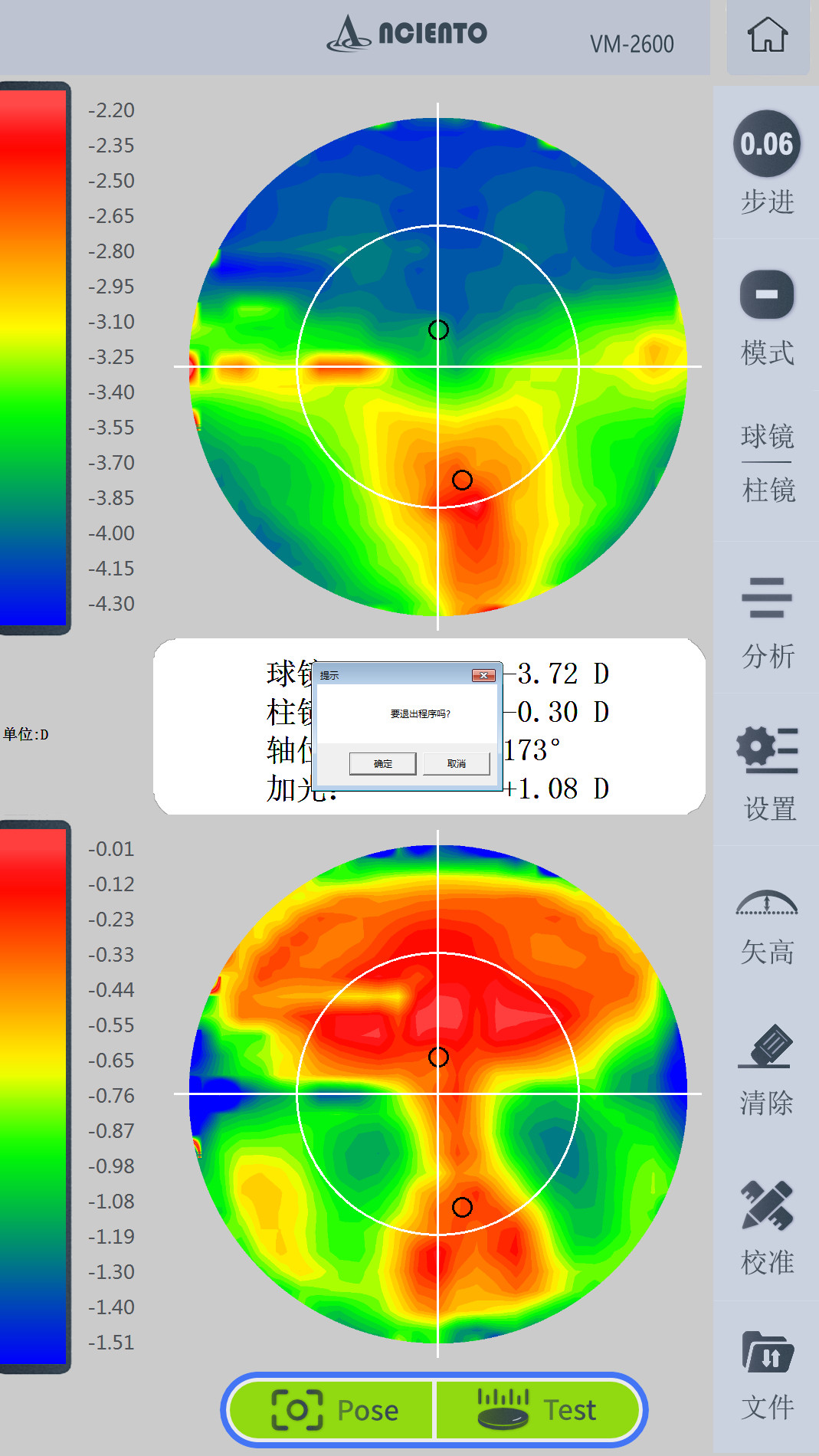

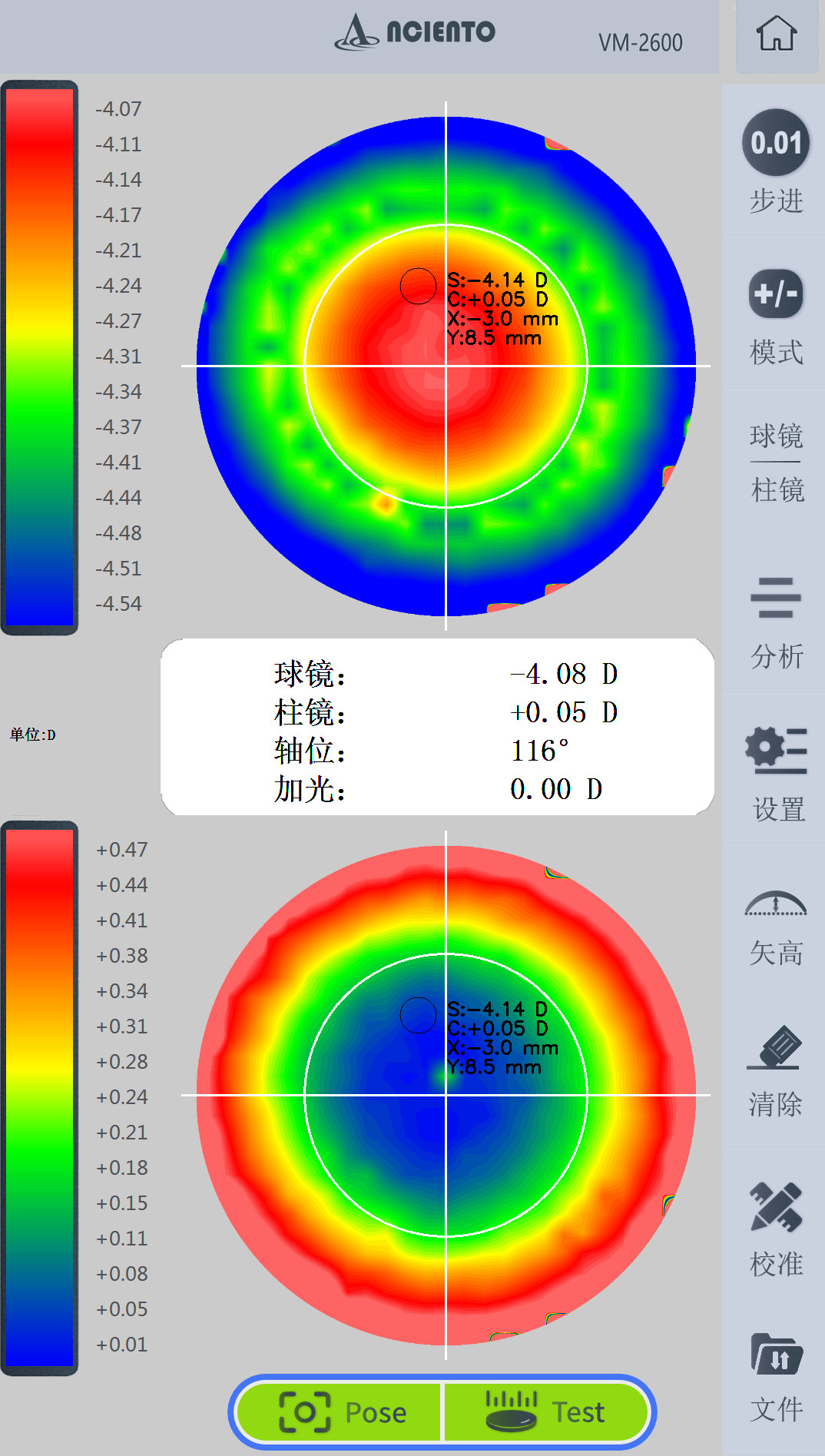

View results and data analysis chart;

Characteristic：

Automatic detection of multiple focal lengths on general lenses such as progressive lenses and aspheric lenses.
Automatic measurement of parameters and surface shape treatment of each parameter of spectacle lenses, glass molds, and dyed lenses.
Support for point selection to confirm the parameter information of a certain point.

Technical index：

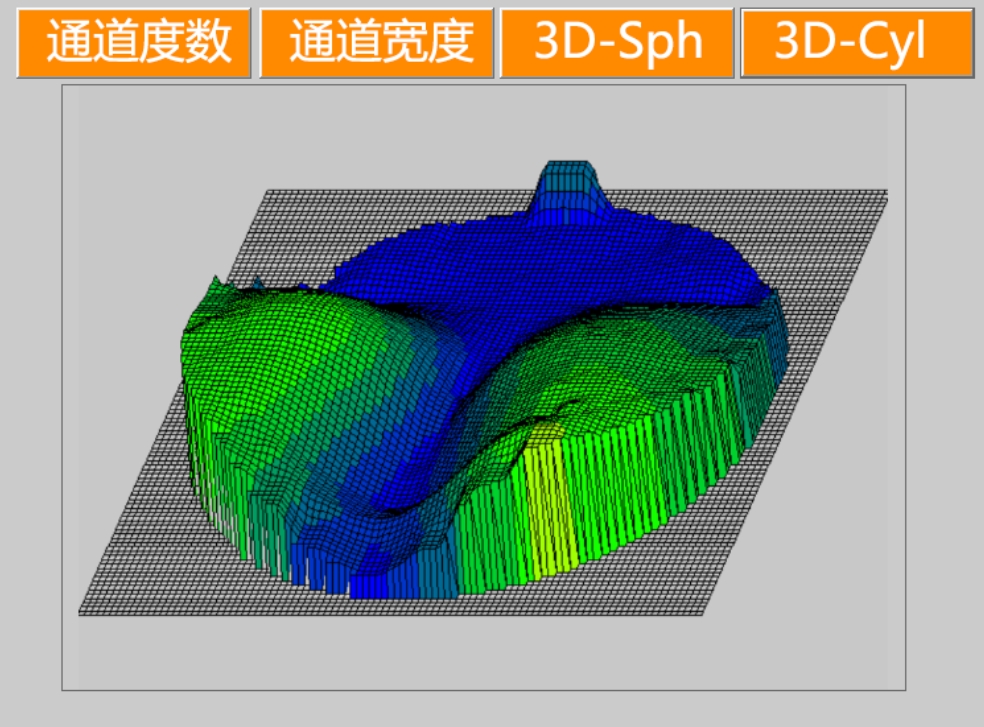

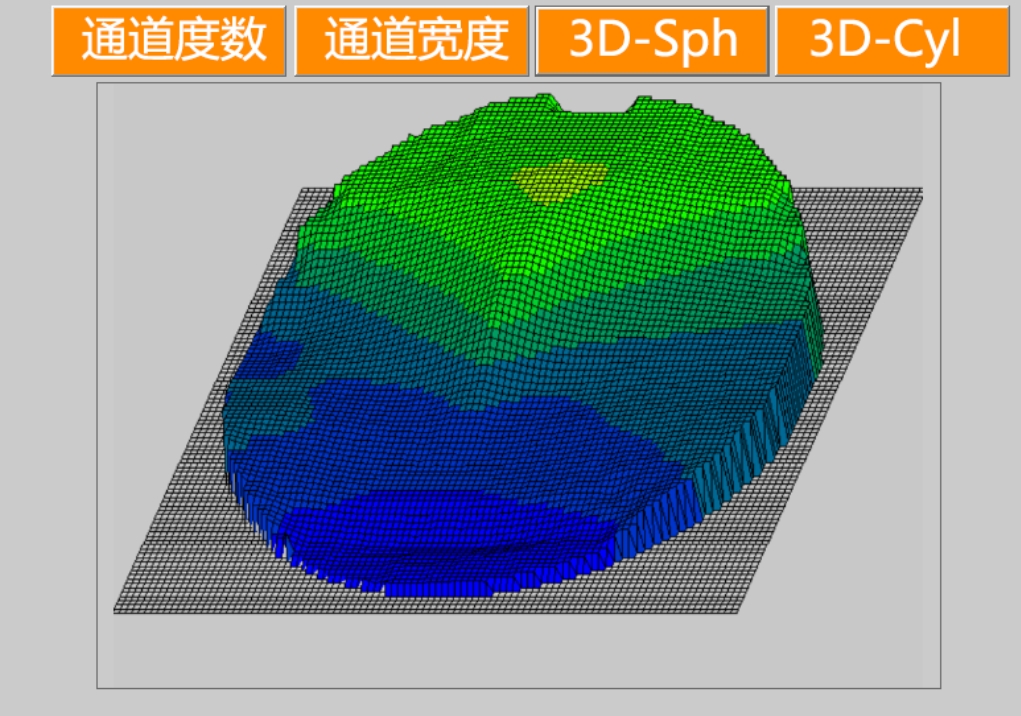

Diagram of 3D Sphere Power 3D Cylinder Power

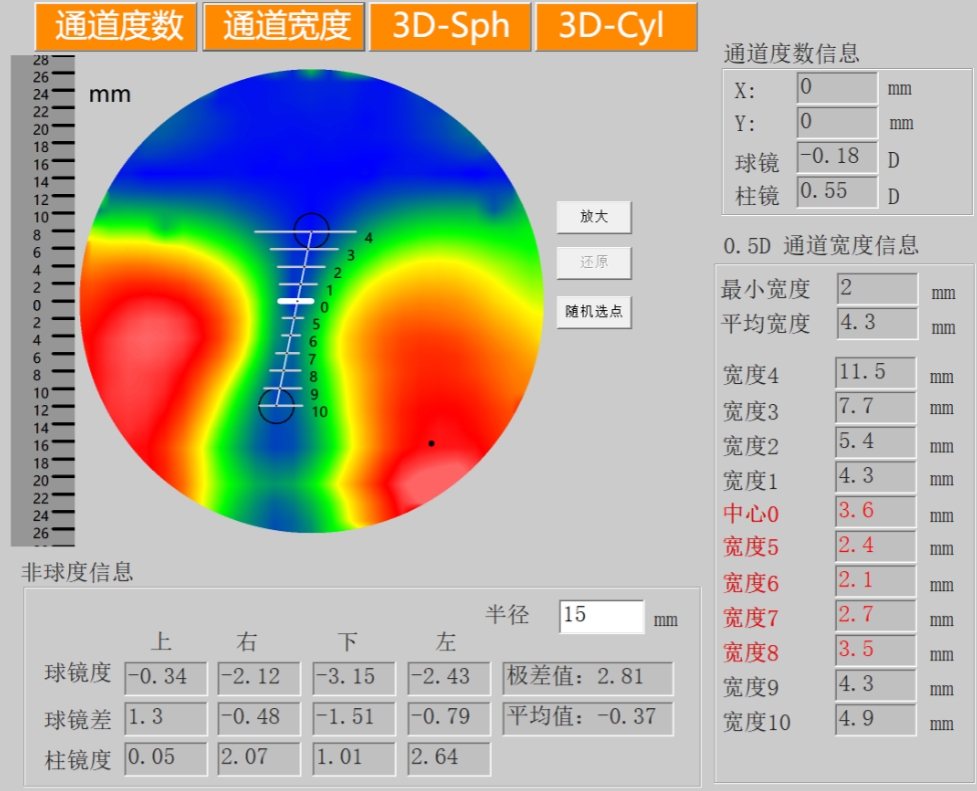

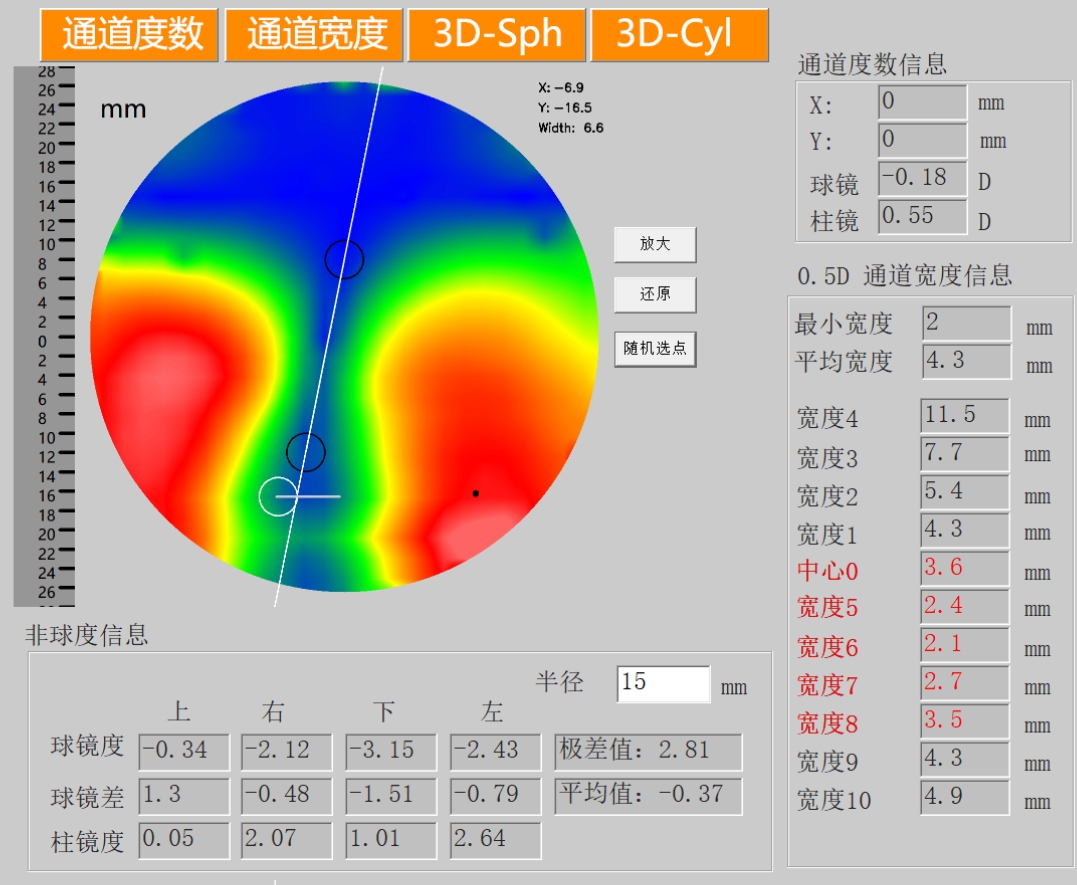

Channel width diagram (automatic version) Channel width diagram (manual version)

Technical specifications
